| Max. Speed (km/h) | 90 |
| Drive System | 6 × 4 |
| Dimensions (L × W × H) (mm) | Overall | 11750 × 2500 × 3500, 3720 |
| Cargo | 8200 × 2326 × 800 |
| Curb Weight (kg) | 13000 |
| Total Mass (kg) | 25000 |
| Wheel Base (mm) | 5625 plus 1350 |
| Wheel Track (mm) (F/R) | 2036 / 1800 |
| Overhang (mm) (F/R) | 1525 / 1654 |
| Approach / Departure Angle (°) | 16 / 11 |
| Engine | WP10.290 E32 (WEICHAI) |
| Horsepower | 345 HP |
| Gearbox | 9JS119 (FAST GEAR) |
| Clutch | Ф 430 diaphragm type |
| Steering Engine | ZF technology |
| Cab | MAN F3000 flat / high roof cabin with A/C and sleeper |
| Axle | Front | 7.5 tons |
| Rear | 2*13 ton hub reduction axle |
| Tire | 12.00R20 |
| Fuel Tank (L) | 300 |

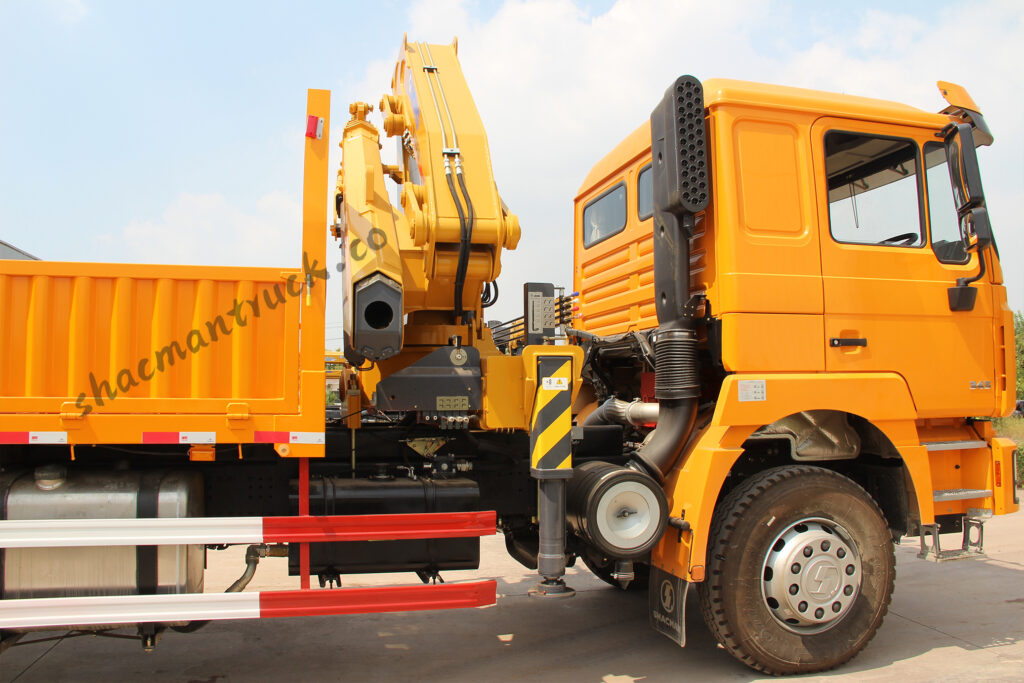

| Crane Model | SQ10ZK3Q |
| Max. Loading Weight (Ton) | 10 |
| Outreach | 12500 |
| Position | Behind cab |
| Operation | Hydraulic |
